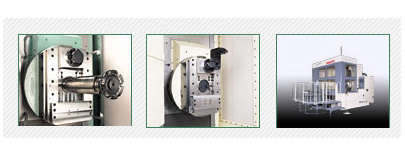

ITEM |
HN80D-II FC | HN100D-II FC | HN130D-FC | ||||
| Metric | Inch | Metric | Inch | Metric | Inch | ||
|
TRAVEL |
X axis travel (longitudinal table) | 1530mm | 60.2" | 2030mm | 79.92" | 3050mm | 120.1" |
| Y axis travel (vertical head) | 900mm | 35.4 " | 1300mm | 51.1 " | 1850mm | 76,8" | |
| Z axis travel(column in & out) | 1020mm | 40.2 " | 1200mm | 47.24" | 1420mm | 55.9" | |
| W axis travel (spindle quill) | 300mm | 11.8" | 300mm | 11.8" | 300mm | 11.8" | |
| U axis travel (facing slide) | 130mm | 5.1 " | 130mm | 5.1 " | 130mm | 5.1" | |
|
TABLE |
Table working surface | 800 x 800mm | 31.5 x 31.5 " | 1000 x 1000mm | 39.37 x 39.37" | 1320 x 1320 mm | 52.0 x 52.0" |
| Table increments[OP] | 1˚ [0.001˚ ] | 1˚ [0.001˚ ] | 1˚ [0.001˚ ] | 1˚ [0.001˚ ] | 0.001˚ | 0.001˚ | |
| Maximum mass on pallet | 2500 kg | 5500 lbs | 3500 kg [5000kg] |
7700lbs [11000lbs] |
8000kg [10000kg] |
17600lbs [22000lbs] |
|
|
SPINDLE |
Spindle speeds | 2500min-1 | 2500rpm | 2500min-1 | 2500rpm | 2500min-1 | 2500rpm |
| Spindle drive motor | AC26/22kW | AC35/30HP | AC26/22kW | AC35/30HP | AC26/22kW | AC35/30HP | |
| Spindle max. Torque | 659.5Nm | 487ft.lbs | 659.5Nm | 487ft.lbs | 659.5Nm | 487ft.lbs | |
| Facing head speeds | 600min-1 | 600rpm | 600min-1 | 600rpm | 600min-1 | 600rpm | |
| Spindle taper | No.50 | No.50 | No.50 | No.50 | No.50 | No.50 | |
|
FEEDRATE |
Rapid traverse X axis | 32m/min | 1260 ipm | 20m/min | 787 ipm | 18m/min | 709 ipm |
| Rapid traverse Y axis | 15m/min | 591 ipm | 15m/min | 591 ipm | 12m/min | 472 ipm | |
| Rapid traverse Z axis | 20m/min | 787 ipm | 15m/min | 591 ipm | 12m/min | 472 ipm | |
|
AUTOMATIC |
Tool magazine capacity | 62 [88/128/175/255] | 62 [88/128/175/255] | 62 [88/128/175/255] | 62 [88/128/175/255] | 62 [88/128/175/255] | 62 [88/128/175/255] |
| N/A | N/A | N/A | N/A | N/A | N/A | N/A | |
| MAXIMUM WORK PIECE | Swing diameter inside machine | φ1750mm | φ68.9'' | φ2300mm | φ90.6'' | φ3200mm | φ126.0'' |
| Height | 1400mm | 55.1" | 1850mm | 72.8" | 3000mm | 118.1" | |
Figures in [ ] indicate optional features.
Bar spindle model HN80D-II BAR/100D-II BAR/130D BAR
| ITEM | HN80D-II BAR | HN100D-II BAR | HN130D-BAR | ||||
| Metric | Inch | Metric | Inch | Metric | Inch | ||
|
TRAVEL |
X axis travel (longitudinal table) | 1530mm | 60.2 " | 2030mm | 79.92" | 3050mm | 120.1 " |
| Y axis travel (vertical head) | 1100mm | 43.3 " | 1500mm | 59.06" | 2050mm | 80.7 " | |
| Z axis travel (column in & out) | 1020mm | 40.2 " | 1200mm | 47.24" | 1420mm | 55.9 " | |
| W axis travel (bar in&out) | 535mm | 21.1 " | 535mm | 21.1 " | 535mm | 21.1 " | |
|
TABLE |
Table working surface | 800 x 800 mm | 31.5 x 31.5 " | 1000 x 1000 mm | 39.37 x 39.37" | 1320 x 1320 mm | 52.0 x 52.0 " |
| Table increments | 1˚ [0.001˚ ] | 1˚ [0.001˚ ] | 1˚ [0.001˚ ] | 1˚ [0.001˚ ] | 0.001˚ | 0.001˚ | |
| Maximum mass on pallet | 2500 kg | 5500 lbs | 3500 kg | 7700 lbs | 8000 kg | 17600 lbs | |
|
SPINDLE |
Spindle speeds | 3500min-1 | 3500rpm | 3500min-1 | 3500rpm | 3500min-1 | 3500rpm |
| Spindle drive motor | AC30/22kW [AC45/37kW] |
AC40/30HP [AC60/50kW] |
AC30/22kW [AC45/37kW] |
AC40/30HP [AC60/50kW] |
AC30/22kW [AC45/37kW] |
AC40/30HP [AC60/50kW] |
|
| Spindle max. Torque | 1836Nm | 1354ft.lbs | 1836Nm | 1354ft.lbs | 1836Nm | 1354ft.lbs | |
| Spindle taper | No.50 | No.50 | No.50 | No.50 | No.50 | No.50 | |
| FEEDRATE | Rapid traverse X axis | 32m/min | 1260 ipm | 20m/min | 787 ipm | 18m/min | 709 ipm |
| Rapid traverse Y,Z axis | 20m/min | 787 ipm | 20m/min | 787 ipm | 12m/min | 472 ipm | |
|
AUTOMATIC |
Tool magazine capacity | 62 [88/128/175/255] |
62 [88/128/175/255] | 62 [88/128/175/255] | 62 [88/128/175/255] | 62 [88/128/175/255] | 62 [88/128/175/255] |
| Matrix type ATC | N/A | N/A | N/A | N/A | [126/178/230/308] | [126/178/230/308] | |
| MAXIMUM WORK PIECE | Swing diameter inside machine | φ1750mm | φ68.9" | φ2300mm | φ90.6" | φ3200mm | φ126.0" |
| Height | 1400mm | 55.1" | 1850mm | 72.8" | 3000mm | 118.1" | |
Figures in [ ] indicate optional features.
